SWC-BH型标准伸缩焊接式万向联轴器
  • 图片名
  • 图片名

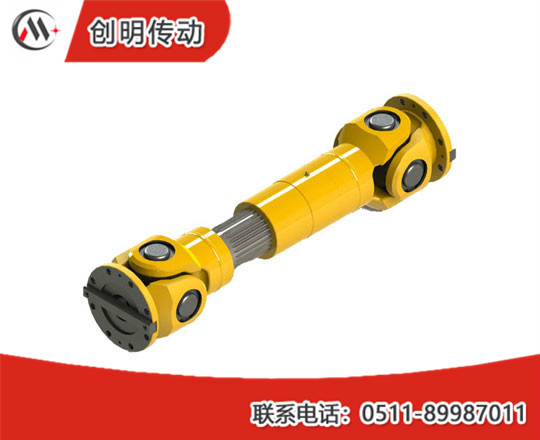

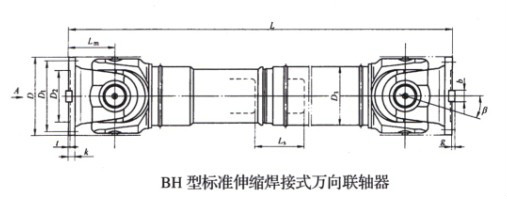

SWC-BH型标准伸缩焊接式万向联轴器

1.能使不在同一轴线,轴线折角较大,轴向移动较大的两轴等角速连续回转。  It can makes the two shafts( which in different axis or have large axis bevel or large axial movement) constant angular velocity rotating continuously .
2.可靠的传递转矩和运动。起最大的特点是具有较大的角向补偿能力。 Reliable torque transmission and movement. The  most important feature is the large angular compensation.
3.整体式叉头,使运载更句可靠性。   Unitary type jaw can the capacity more reliable.
4.结构紧凑,传动效率高,噪声低,使用寿命长,维修保养方。Compact structure, high transmission efficiency, low noise, long service life and maintenance.

立即咨询>>
